Machine |

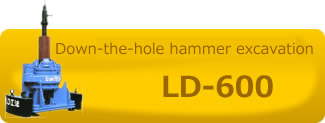

LD-600 |
Maximum excavation diameter |
φ610 |
Rotation |
20～0rpm |
Stall torque |
3.6Ton-m |
Body weight |
3900kg※1/4300kg※2 |
Unit weight |
2850kg |

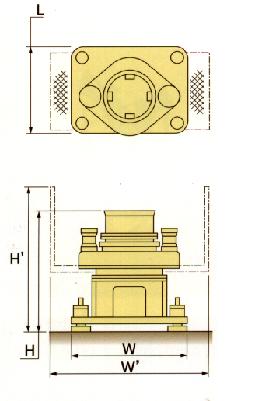

Body measurements【Body】 |
1925ｘ1300ｘ1800 |
Body measurements【With a work platform】 |
1925ｘ1300ｘ2700 |
Unit measurements（HXWXL） |
1400ｘ1600ｘ2150 |
※1is for single clutch
※2is for double clutch
|
 |
Machine |

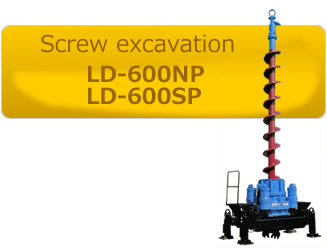

LD-600NP/LD600SP |
Maximum excavation diameter |
φ610 |
Rotation |
16～0rpm/11～0rpm |
Stall torque |
5.1Ton-m/7.2Ton-m |
Body weight |
4950kg/5350kg |
Unit weight |
2900kg |

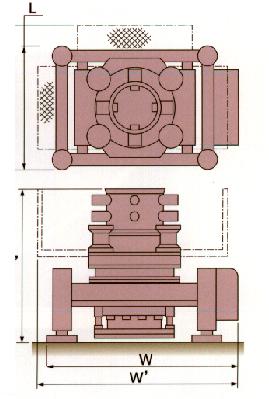

Body measurements【Body】 |
1585x1500x2745 |
Body measurements【With a work platform】 |
1810x1835x2745 |
Unit measurements（HXWXL） |
1400x1750x2250 |
|
 |
Machine |

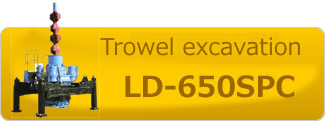

LD-650SPC |
Maximum excavation diameter |
φ610 |
Rotation |
High14～0rpm/Low7～0rpm |
Stall torque |
High7.5Ton-m/Low15.4Ton-m |
Body weight |
11500kg |
Unit weight |
3380kg |

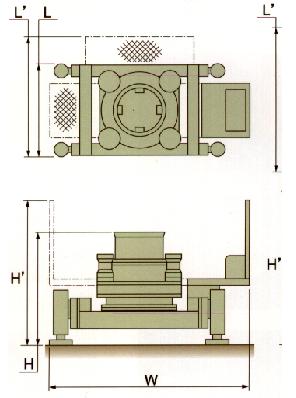

Body measurements【Body】 |
2450x2200x3100 |
Body measurements
【With a work platform】 |
2450x2600x3400 |
Unit measurements（HXWXL） |
1500x1900x2350 |
|
